Compressed Air and technical gas Filter

Note:

The marked products may be of particular interest to you. They impress by best characteristics, an optimal price-performance ratio or a feature which no other product can offer you. Click on the note and find out more!
Wasserabscheider
Druckluftfilter
Stickstoffgeneratoren

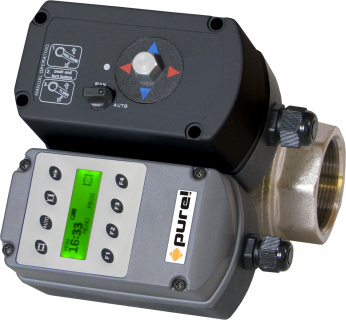

Pure-PRO Compressed air system optimizations
  • PN16
  • 2 voltage options 115VAC or 230VAC 50 / 60Hz
  • Medium temperature 1 to 100°C
  • Ambient temperature up to 50°C
  • Illuminated LCD display
  • Seven-day programs (up to 16 times a day)
  • Valve maintenance possible
  • remote control
  • Connections G1 and G2
  • Closing time 30 seconds / 90°
Downloads
Druckluftfilter
Hersteller: Domnick Hunter
domnick hunter OIL-X
  • New series of compressed air thread filters
  • Flow rates from 36 m³/h to 3600 m³/h
  • Connection from G 1/4" to G 4"
  • Max. Operating pressure 16 bar gauge (20 bar gauge AA / AO dry particle or ACS oil mist separation)
  • Compressed air quality validated according to ISO 12500-1: 2007 and ISO 8573-1: 2010 by independent experts
  • Reliable separation of solids, oil and water aerosols and oil vapors
  • Guaranteed compressed air quality in compliance with maintenance recommendations
  • Increased machine utilization and productivity due to less downtime, less maintenance costs
  • Constant guarantees lowest differential pressures throughout the lifetime of the element with a high dirt holding capacity
  • Low differential pressures reduce operating costs and ensure economical operation
  • Optimal price-performance ratio of operating and wearing parts costs
  • 10-year guarantee on the filter housing
  • Permanently high energy savings and thus improved CO2 balance for your company
  • Lowest differential pressure in the market of only 125 mbar
Druckluftfilter
Hersteller: Domnick Hunter
OIL-X Flanged Filter
  • Submicron filter with flange connection for large flow rates
  • Flow rates from 2232 m³ h to 31248 m³/h
  • Flange connection from DN 80 to DN 300
  • Standard range up to 16 bar g (232 psi g)
  • Coalescence filter validated according to ISO 12500-1
  • The resulting air quality complies with all versions of ISO 8573-1
  • The performance has been verified by the independent testing laboratory Lloyds Register
  • Design according to ASME VIII Div 1 (non-U)
  • Reliable separation of solids, oil and water aerosols and oil vapors
  • Increased machine utilization and productivity due to less downtime, less maintenance costs
  • Quick and easy maintenance thanks to NT Easy-Fit element insert
  • Constant low differential pressures throughout the life of the element with high dirt holding capacity thanks to pleated element design
  • Optimal price-performance ratio of operating and wearing parts costs
  • Guaranteed compressed air quality in compliance with maintenance recommendations
  • Stainless steel versions also available
Druckluftfilter
Compressed air heater VH2100PURE with precise and extremely fast control
  • Dimensions (WxHxD): 262x230x150mm
  • Weight: 7 kg
  • Maximum operating pressure: 16 bar
  • Pressure difference: approx. 50 mbar
  • Max. Flow rate: 850 NL / min (100 ° C)
​                                      580 NL / min (120 ° C)
  • Protection class: IP65
  • Outlet connection: G 1/2 "
  • Connection inlet: G 1/2 "
  • Electrical connection: Valve plug
​                                                 DIN 43650 Form-A
  • Operating voltage: 230V 50Hz
  • Max. Operating current: 9.72 A
  • Power consumption: 1.5 kW
Downloads
Druckluftfilter
Hersteller: Hiross
Hiross Hyperfilter
Product Features:
• Protects tools and downstream equipment
• Increases efficiency, reduces downtimes
• Significantly reduces maintenance costs
• Full range of models and filtration grades for all industrial applications
• Guaranteed performance levels
• The new look housing features a redesigned inside to reduce pressure drops even further, saving energy


To maintain the air quality standards,  lter elements must be replaced at least every 12 months with
genuine Parker Hiross parts. Annual  lter element changes are therefore essential and ensure:
• Optimal performance is maintained
• Air quality continues to meet international standards
• Low operational costs
• Continued protection of downstream equipments & processes
Failure to perform the scheduled replacement can lead to increasing system pressure Drops.

Downloads
Druckluftfilter

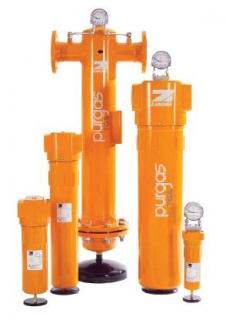

Filter series TGA for technical gases
Applications
  • Critical industrial gases and natural gases classified in fluid group 1 as per
  • PED (DGRL) 97/23/EC
  • Zone 1 and zone 2 as per ATEX 94/9/EC
Downloads
