Filtration & Seperation

Hinweis:
Die markierten Produkte sind für Sie besonders interessant. Diese überzeugen durch beste Eigenschaften, ein optimales Preis-Leistungs-Verhältnis oder ein Merkmal, was Ihnen kein anderes Produkt bieten kann. Klicken Sie auf den Hinweis und erfahren Sie mehr!

Wasserabscheider
Druckluftfilter
Stickstoffgeneratoren
Pure-PRO Compressed air system optimizations
  • PN16
  • 2 voltage options 115VAC or 230VAC 50 / 60Hz
  • Medium temperature 1 to 100°C
  • Ambient temperature up to 50°C
  • Illuminated LCD display
  • Seven-day programs (up to 16 times a day)
  • Valve maintenance possible
  • remote control
  • Connections G1 and G2
  • Closing time 30 seconds / 90°
Downloads
Druckluftfilter
Hersteller: Domnick Hunter
domnick hunter OIL-X
  • New series of compressed air thread filters
  • Flow rates from 36 m³/h to 3600 m³/h
  • Connection from G 1/4" to G 4"
  • Max. Operating pressure 16 bar gauge (20 bar gauge AA / AO dry particle or ACS oil mist separation)
  • Compressed air quality validated according to ISO 12500-1: 2007 and ISO 8573-1: 2010 by independent experts
  • Reliable separation of solids, oil and water aerosols and oil vapors
  • Guaranteed compressed air quality in compliance with maintenance recommendations
  • Increased machine utilization and productivity due to less downtime, less maintenance costs
  • Constant guarantees lowest differential pressures throughout the lifetime of the element with a high dirt holding capacity
  • Low differential pressures reduce operating costs and ensure economical operation
  • Optimal price-performance ratio of operating and wearing parts costs
  • 10-year guarantee on the filter housing
  • Permanently high energy savings and thus improved CO2 balance for your company
  • Lowest differential pressure in the market of only 125 mbar
Druckluftfilter
Hersteller: Domnick Hunter
OIL-X Flanged Filter
  • Submicron filter with flange connection for large flow rates
  • Flow rates from 2232 m³ h to 31248 m³/h
  • Flange connection from DN 80 to DN 300
  • Standard range up to 16 bar g (232 psi g)
  • Coalescence filter validated according to ISO 12500-1
  • The resulting air quality complies with all versions of ISO 8573-1
  • The performance has been verified by the independent testing laboratory Lloyds Register
  • Design according to ASME VIII Div 1 (non-U)
  • Reliable separation of solids, oil and water aerosols and oil vapors
  • Increased machine utilization and productivity due to less downtime, less maintenance costs
  • Quick and easy maintenance thanks to NT Easy-Fit element insert
  • Constant low differential pressures throughout the life of the element with high dirt holding capacity thanks to pleated element design
  • Optimal price-performance ratio of operating and wearing parts costs
  • Guaranteed compressed air quality in compliance with maintenance recommendations
  • Stainless steel versions also available
Hochdruckfilter
Hersteller: Domnick Hunter
High Pressure Filter - Series OIL-X IP50 ADVANTAGE
  • Medium pressure filter for applications from 20 barg to 50 barg
  • Meets or exceeds the requirements of the International Standard for Air Quality Delivered in all editions of ISO8573-1 for compressed air quality
  • Merging filters fully tested in accordance with ISO12500-1
  • Power independently validated by the Lloyds Register
  • Elimination of oil, water and dirt - Available in six filtration lines
  • Ideal for Food / Drink / Medicines / P.E.T. applications
  • FDA Title 21
  • EC1935 - Exempted 2004
  • Trouble-Free and High Performance - Quality Oil XPLUS ADVANTAGE
  • 10 years insure on the filter housing
  • Convenience of installation - compact accommodation design
  • Port options - BSPP / NPT - also available weld flange kits
  • Filter up to 350 bar on request.
Wasserabscheider
Hersteller: Hiross
Hiross STH & SFH Water separator
  • Cyclone water separator
  • Flow rate 54 m³ / h to 4020 m³ / h
  • Connection 3/8 "to DN 150
  • Horizontal or vertical arrangement
  • Also available in stainless steel
  • For high or low flow rates
  • The acceptance according to PED (97/23 / EC) is offered by default for all models
  • Other international approvals are available on request.
Downloads
Hochdruckfilter
Hersteller: Domnick Hunter
High Pressure Filter - Series GH 100 and GH 350
  • High pressure filter for compressed air up to 100 bar or up to 350 bar
  • Volume flow 188 m³/h to 2787 m³/h or 365 m³/h to 4261 m³/h
  • Connection sizes G1/2 to G 11/2
  • optimal for high pressure ranges up to 100 bar
  • Pleating with a 4 times higher element surface compared to conventionally wound construction
  • with double O-ring seal to protect the housing threads from dirt and moisture from the outside
  • Ready filter including filter element and manual drain
  • Optionally available without manual drain
Downloads
Hochdruckfilter
Hersteller: Zander
High Pressure Filter -Series G - 25 up to 50 bar
  • High pressure filter 25 to 50 bar
  • Volume flow 188 m³/h to 2787 m³/h
  • Thread connection G 1/2 to G 11/2
  • Proven Zander G series
  • Ready-to-use filter with manual drain valve
  • Optionally available without drain (drain open, not ready for operation).
Downloads
Stickstoffgeneratoren
Hersteller: Domnick Hunter
NitroSource
  • Energy saving technology accurately adjusts the amount of input compressed air to reduce compressed air consumption and reduce energy and cost to the amount and purity of nitrogen produced
  • Cost-effective maintenance, long service life
  • The carbon molecular sieve, the "heart" of the generator, is the more efficient form of nitrogen production. It ensures a very long generator life and significant savings in maintenance costs.
  • Compliant with industry standards, food and drug safe in accordance with European regulations (EIGA) and the US Food & Drugs Administration (FDA Article 21) as well as the Pharmacopoeia
  • Gas Quality Control
  • Flow regulator ensures correct pressure and flow
  • Integrated oxygen analyzer permanently measures the gas purity
  • Exhaust Gas Bypass Valve automatically discharges gas that does not comply with specifications, ensuring product quality through guaranteed gas quality
  • Regulated inlet and outlet pressure prevents damage to the generator and the application
  • Electronic control system 100% management of all critical generator functions
  • Remote monitoring allows connection to existing remote management control systems and distributed generator control to control and track gas parameters from a central location
  • Supply uncomplicated expandable. Just add extra generators as the needs of your applications grow.
Downloads
Stickstoffgeneratoren
Hersteller: Domnick Hunter
MIDIGAS
  • Can be operated with a standard factory compressed air supply
  • Provides 5% to 10 ppm oxygen without any additional cleaning required
  • Available in 3 models with different flow rates and purities
  • Automatic economy mode
  • Integrated oxygen analyzer for continuous monitoring of purity
  • Digital and analogue outputs for remote monitoring
  • alarm functions
  • Easy to use control interface
  • Compact design
  • Modular concept
Filterelemente
Hersteller: Domnick Hunter
oil-xplus advantage
  • Filter elements for the filter series Oil-Xplus
  • Min. Operating temperature range 1.5°C - 66°C
  • Meets and exceeds ISO 8573-1 tested to ISO 12500-1
  • Lowest total cost
  • Energy savings of 49% over the original OIL XPLUS element
  • Lower environmental impact reduces CO2 emissions
  • Guaranteed and lasting high air quality
  • Designed to retrofit original OIL-XPlus filter housings
  • Replaces standard AO, AA and AO-TS, AA-TS rank elements
  • Maximum operating temperature 100°C
Downloads
Prozess- Filter
Hersteller: Domnick Hunter
Sterile filter elements HIGH FLOW BIO-X
  • ​High flowing hydrophic PTFE impregnated media
  • Fully validated by aerosolized bacterial and viral challenge
  • Stainless steel inner core
  • 100% integrity testable by Valairdata 3 aerosol challenge
  • Reduce system size and reduced total cost of ownership.
  • Provides complete process security
  • Strong and robust for extended service life
  • Guaranteed performance in-situ
Downloads
Filterelemente

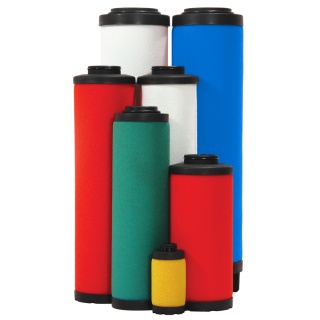

Parfit Compressed air interchangeable elements
  • High quality compressed air - guaranteed
  • Protection of adsorption dryer beds
  • Protection of the downhill equipment of the staff
  • Reduced operating costs
  • Increased productivity & profitability
  • Continuous peace of mind
Downloads
Prozess- Filter
Hersteller: Domnick Hunter
Vent Filter Housing VBV and VA
  • For ventilation of storage and transport containers
  • Housing lock by triple bayonet with knurled screw
  • Optionally available with heating jacket or steam jacket
  • Made of high quality stainless steel
  • Available in almost all connection shapes and sizes
  • Flow-optimized conception without corners and edges
  • Can be used with sterile filter elements
  • Can be used with stainless steel filter elements of the HFSS and HFS series and polypropylene elements of the PEPLYN AIR series
Downloads
Prozess- Filter
Hersteller: Domnick Hunter
Steam filter elements
  • 316L stainless steel filter cartridges
  • Exceptionally high flow rates
  • Available in compliance with 3A Standard 609-03 (culinary grade) 1 micron
  • High dirt holding capacity
  • ‘JUMBO’ filter  configuration ensures maximum utilization of pipework capacity
Downloads
Filterelemente
Hersteller: Zander
Filter elements for Zander G series
  • Advanced Technology
  • Pleated design
  • Paint compatible versions
  • High-temperature version
  • Cartridge versions for activated carbon
  • Five degrees of separation
Prozess- Filter
Hersteller: Pure!

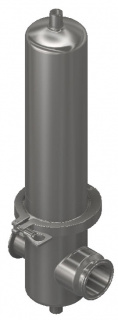

Sterilfiltergehäuse HIGH FLOW PVA
  • CE marking according to Pressure Equipment Directive 97/23 / EC (PED) for fluid group 2 (fluid group 1 on request)
  • "Click-Lock" system for element fixation using double O-ring and double bayonet to prevent bypasses
  • Electropolished inner surface of the housing, no corners and edges to increase biological safety
  • Made of high quality stainless steel 1.4301 (AISI 304) and 1.4404 (AISI 316L)
  • Flow-optimized design with low pressure drops for economical and cost-effective filtration
  • Low dead space volume
  • Can be used with sterile filter elements of the BIO-X II, HIGH FLOW BIO-X, Tetpor Air and HIGH FLOW TETPOR II series.
  • Can be used with steam filter elements of the HFSS and HFS series
  • Available in almost all common connection sizes and connection types
  • Optionally available with housing heating (steam jacket or electric heating jacket)
Downloads
Filterelemente
Hersteller: Pure!

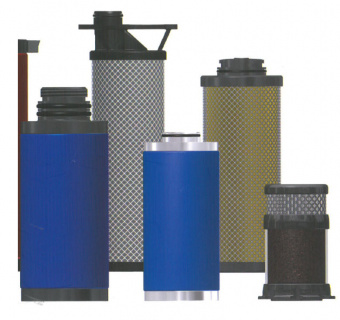

pure!fit Filterelemente passend in Wettbewerbsgehäuse
  • meets the highest quality standards
  • fast availability within 24h
  • all filter elements of the pure! fit series available from stock
  • enables the purchase of compressed air filter elements from one source
  • pure! fit and Parfit make up the most extensive element program on the market
Downloads
Druckluftfilter
Compressed air heater VH2100PURE with precise and extremely fast control
  • Dimensions (WxHxD): 262x230x150mm
  • Weight: 7 kg
  • Maximum operating pressure: 16 bar
  • Pressure difference: approx. 50 mbar
  • Max. Flow rate: 850 NL / min (100 ° C)
​                                      580 NL / min (120 ° C)
  • Protection class: IP65
  • Outlet connection: G 1/2 "
  • Connection inlet: G 1/2 "
  • Electrical connection: Valve plug
​                                                 DIN 43650 Form-A
  • Operating voltage: 230V 50Hz
  • Max. Operating current: 9.72 A
  • Power consumption: 1.5 kW
Downloads
Wasserabscheider
Hersteller: Domnick Hunter
domnick hunter WSP Water Separator
  • Water separator series OIL-X
  • Flow rates from 36 m³ / h to 25920 m³ / h
  • Connection from G 1/4 "to DN 300
  • Operating pressure 16 bar ü (20 bar ü with manual drain for thread filters)
  • Tested to ISO 8573.9
  • Independent performance review by Lloyds Register
  • high efficiency 99%
  • optimal price / performance ratio
  • minimal maintenance
  • tested, patented design
  • high flow rates
  • very low differential pressure
  • automatic steam trap as standard
  • Removal of rust particles and solids
  • Diverts large quantities of water
  • Aftercoolers or before dryers
  • With automatic drain valve
  • BSPP or DN flange connection
  • Filters with separate acceptances are available at extra cost.
  • Lifetime warranty
Downloads
Druckluftfilter
Hersteller: Hiross
Hiross Hyperfilter
Product Features:
• Protects tools and downstream equipment
• Increases efficiency, reduces downtimes
• Significantly reduces maintenance costs
• Full range of models and filtration grades for all industrial applications
• Guaranteed performance levels
• The new look housing features a redesigned inside to reduce pressure drops even further, saving energy


To maintain the air quality standards,  lter elements must be replaced at least every 12 months with
genuine Parker Hiross parts. Annual  lter element changes are therefore essential and ensure:
• Optimal performance is maintained
• Air quality continues to meet international standards
• Low operational costs
• Continued protection of downstream equipments & processes
Failure to perform the scheduled replacement can lead to increasing system pressure Drops.

Downloads
Druckluftfilter
Filter series TGA for technical gases
Applications
  • Critical industrial gases and natural gases classified in fluid group 1 as per
  • PED (DGRL) 97/23/EC
  • Zone 1 and zone 2 as per ATEX 94/9/EC
Downloads
Prozess- Filter
PHB Filterhousing - specifically designed for food and beverage applications
>Materials of Construction
 Housing: 316L/1.4404
>Surface Finish
 Internal: Mechanical polishing <0.8μm Ra
 External: Mechanical mirror polishing
 Cartridge Socket: C style (226), TRUESEAL
 Number of Cartridges: 1
>Technical Design Data
Directive: PED 2014/68/EU
                  ATEX 2014/34/EU
PED Category: Demi, K-20 - SEP (ART 4.3)
                          30¨ - CAT 1
PED Fluid Group: PHB Demi, Group 1&2
                              PHB K-30¨, Group 2 only
PED Fluid State: Gas
ATEX Regulation: Group 2, CAT 2, Gas & Dust
                                Fluid GR IIC, Zone 1 & 21
Design Pressure: -1 to 10 bar @ -20°C to 150°C
Certification: Supplied as standard with IOMI and vessel inspection certificate
Downloads
