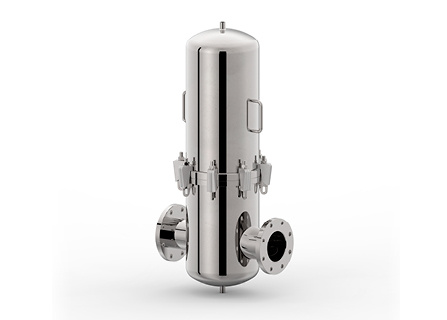

HIGH FLOW - FILTER HOUSING SERIES PVA FOR STEAM APPLICATIONS


The HIGH FLOW housing series was designed for critical applications.
Especially for the permanent admission of steam, some applications are recommended from a safety point of view:

The housings themselves pose the least problem when permanently pressurizing steam.
Instead, attention should be paid to the connections and seals.

Instead of EPDM, we recommend graphite tanged sheet metal.
Instead of the milk pipe screw connection, we prefer flange or clamps.

The high quality, electropolished stainless steel-housing-surface  1.4404 (AISI 316L) prevent rust, which occurs at high temperatures.

Features:
  • CE marking according to Pressure Equipment Directive 97/23/EC (PED) for fluid group 2 (fluid group 1 on request)
  • "Click-Lock" system for element fixation by means of double O-ring and double bayonet to prevent bypasses
  • Electropolished inner housing surface, no corners and edges to increase biological safety
  • Manufactured from high-quality stainless steel 1.4404 (AISI 316L)
  • Sealing material made of graphite tanged sheet metal
  • Flange and clamp connections
  • To be used with steam filter elements of the series ZCSS, ZCHS and PED
  • Available in almost all common connection sizes and connection types
Item-No. / Discounts
Price
Inventory / Description
Qty.
PVA-11ACE-AG/FM


Ret. Price 2.498,95 €
Your Price from 2 Stück 2.157,17 €
Your Price from 5 Stück 1.956,61 €
Your Price from 10 Stück 1.881,17 €
available, ready to ship in 61-63 Days
HIGH FLOW Dampffiltergehäuse G 1/2
Graphitdichtung/Flanschgeh./1.4404
PVA-11ACE-FG/FM


Ret. Price 3.077,40 €
2 Stück in stock, ready to ship in 1 Day
HIGH FLOW Dampffiltergehäuse
Flanscha/Graphitdichtung/Flanschgeh./1.4404
PVA-12ACE-3G-FM


Ret. Price 2.748,50 €
Your Price from 2 Stück 2.400,28 €
Your Price from 5 Stück 2.190,06 €
available, ready to ship in 26-28 Days
HIGH FLOW Dampffiltergehäuse G 1 1/4
mit Anschweißende
PVA-12ACE-AG/FM


Ret. Price 2.521,95 €
Your Price from 2 Stück 2.183,39 €
Your Price from 5 Stück 1.989,50 €
Your Price from 10 Stück 1.920,50 €
available, ready to ship in 61-63 Days
HIGH FLOW Dampffiltergehäuse G 1/2
Graphitdichtung/Flanschgeh./1.4404
PVA-13ACE-AG/FM


Ret. Price 2.567,95 €
Your Price from 2 Stück 2.222,95 €
Your Price from 5 Stück 2.025,61 €
Your Price from 10 Stück 1.946,95 €
available, ready to ship in 61-63 Days
HIGH FLOW Dampffiltergehäuse G 1/2
Graphitdichtung/Flanschgeh./1.4404
PVA-141CE-AG/FM


Ret. Price 3.296,36 €
Your Price from 2 Stück 2.954,58 €
Your Price from 5 Stück 2.751,03 €
Your Price from 10 Stück 2.678,58 €
available, ready to ship in 26-28 Days
HIGH FLOW Dampfgehäuse
mit Flansch in 1.4404
PVA-142CE-AG/FM


Ret. Price 3.918,75 €
Your Price from 2 Stück 3.540,25 €
Your Price from 5 Stück 3.323,75 €
Your Price from 10 Stück 3.061,75 €
available, ready to ship in 61-63 Days
HIGH FLOW Dampfgehäuse
mit Flansch in 1.4404
PVA-182CE-AG/FM


Ret. Price 4.200,03 €
Your Price from 2 Stück 3.743,25 €
Your Price from 5 Stück 3.470,70 €
Your Price from 10 Stück 3.378,70 €
available, ready to ship in 26-28 Days
HIGH FLOW Pharmagehäuse
mit Clemp in 1.4404
PVA-193CE-AG/FM


Ret. Price 4.342,40 €
Your Price from 2 Stück 3.882,63 €
Your Price from 5 Stück 3.616,52 €
Your Price from 10 Stück 3.517,62 €
available, ready to ship in 26-28 Days
HIGH FLOW Pharmagehäuse
mit Clemp in 1.4404
