HIGHFLOW BIO-X

Mutterartikel

HIGHFLOW BIO-X


Depth filter series

The requirements for the sterilization of compressed air and other process gases are becoming increasingly stringent. The safe and absolute retention of all microorganisms is required, with the highest possible throughput rates and long filter service lives.

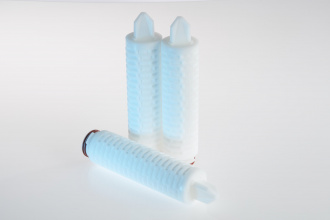

The solution is the HIGH FLOW BIO-X filter series, specially developed for these requirements.

With an absolute retention rate of 0.01 micron, all microorganisms are safely and irreversibly retained.

The filter medium, a pleated borosilicate microfibre, exceeds conventional depth and membrane filters in throughput many times over.
Existing deep-bed or membrane filter systems can be reduced by approx. 30 - 50% in size by using HIGH FLOW BIO-X elements.

To protect the borosilicate microfibre from condensate, it has been additionally refined with PTFE in a patented process. The filter medium can therefore no longer be wetted by water.

Through depth filtration, in combination with a large filtration surface and a cavity volume of 95%, HIGH FLOWBIO-X filter elements have a high capacity for absorbing particles.
They are therefore ideal in applications with poor pre-filtration, as sterile filters behind low-pressure blowers or for pressureless tank ventilation.
By using heat stabilized polypropylene outer support bodies and end caps as well as a stainless steel inner support body, HIGH FLOW BIO-X filter elements are thermally and mechanically extremely stable.

The Highflow Bio-X is fully validated and with regard to the HACCP concept integrity testable.
Item-No. / Discounts
Price
Inventory / Description
Qty.
509990034


Ret. Price 103,63 €
available, ready to ship in 11-13 Days
ZCHB-BY-S1 (x1)
539992696


Ret. Price 663,13 €
available, ready to ship in 12-14 Days
ZCHB-2C-S3 (x1)
539993270


Ret. Price 995,92 €
available, ready to ship in 12-14 Days
ZCHB-3C-S3 (x1)
539995266


Ret. Price 331,55 €
1 Stück in stock, ready to ship in 1 Day
ZCHB-1C-S3 (x1)
10" P7 Silicone flache Endkappe
ZCHB-1C


Ret. Price 331,55 €
11 Stück in stock, ready to ship in 1 Day
HF BIO-X Filter Cartridge
10" P7 Silicone
ZCHB-1C-E


Ret. Price 331,55 €
available, ready to ship in 38-40 Days
509550010 (x1)
10" P7 EPDM
ZCHB-1C-V


Ret. Price 331,54 €
1 Stück in stock, ready to ship in 1 Day
509550016 (x1)
ZCHB-1H


Ret. Price 331,55 €
1 Stück in stock, ready to ship in 1 Day
539992572 (x1)
10" UF retro Silicone Oring
ZCHB-1R


Ret. Price 331,55 €
available, ready to ship in 38-40 Days
509520153 (x1)
10 Zoll ; Code R
ZCHB-2C


Ret. Price 663,13 €
3 Stück in stock, ready to ship in 1 Day
HF BIO-X Filter Cartridge
20" P7 Silicone
ZCHB-2C-E


Ret. Price 663,13 €
3 Stück in stock, ready to ship in 1 Day
509550004 (x1)
20" P7 EPDM
ZCHB-2H


Ret. Price 663,13 €
available, ready to ship in 2-4 Days
HF BIO-X Filter Cartridge
20" UF retro Silicone Oring
ZCHB-2R


Ret. Price 663,13 €
available, ready to ship in 38-40 Days
509520151 (x1)
20 Zoll ; Code R
ZCHB-3C


Ret. Price 997,91 €
2 Stück in stock, ready to ship in 1 Day
HF BIO-X Filter Cartridge
30" P7 Silicone Oring
ZCHB-3H


Ret. Price 995,92 €
available, ready to ship in 4-6 Days
539992633 (x1)
30" UF retro Silicone Oring
ZCHB-AH/1


Ret. Price 159,86 €
available, ready to ship in 6-8 Days
509990115 (x1)
ZCHB-AT


Ret. Price 480,53 €
15 Stück in stock, ready to ship in 1 Day
509520103 (x3)
ZCHB-AT-E


Ret. Price 480,53 €
2 Box in stock, ready to ship in 1 Day
509550011 (x3)
ZCHB-AT-S1


Ret. Price 160,17 €
19 Stück in stock, ready to ship in 1 Day
509990008 (x1)
ZCHB-AZ


Ret. Price 480,53 €
1 Stück in stock, ready to ship in 1 Day
509520107 (x3)
ZCHB-AZ/1


Ret. Price 159,86 €
2 Stück in stock, ready to ship in 1 Day
509990119 (x1)
ZCHB-BH


Ret. Price 311,52 €
available, ready to ship in 11-13 Days
509520157 (x3)
509520157
ZCHB-BT


Ret. Price 311,52 €
28 Box in stock, ready to ship in 1 Day
509520104 (x3)
ZCHB-BT-E


Ret. Price 311,52 €
Your Price from 2 Box 311,52 €
available, ready to ship in 9-11 Days
509550007 (x3)
ZCHB-BT-S1


Ret. Price 103,64 €
available, ready to ship in 6-8 Days
509990012 (x1)
ZCHB-BZ


Ret. Price 310,92 €
6 Stück in stock, ready to ship in 1 Day
539992865 (x3)
VPE = 3 Stück
ZCHB-BZ-S1


Ret. Price 103,64 €
7 Stück in stock, ready to ship in 1 Day
539992865 (1)
ZCHB-KC


Ret. Price 225,01 €
available, ready to ship in 2-4 Days
HF BIO-X Filter Cartridge
ZCHB-KH


Ret. Price 216,56 €
available, ready to ship in 2-4 Days
539994494 (x1)
